12-Stage High Voltage Multiplier Module | 20kV Withstand Voltage | 46mm Arc Distance | Customizable DC High Voltage Output

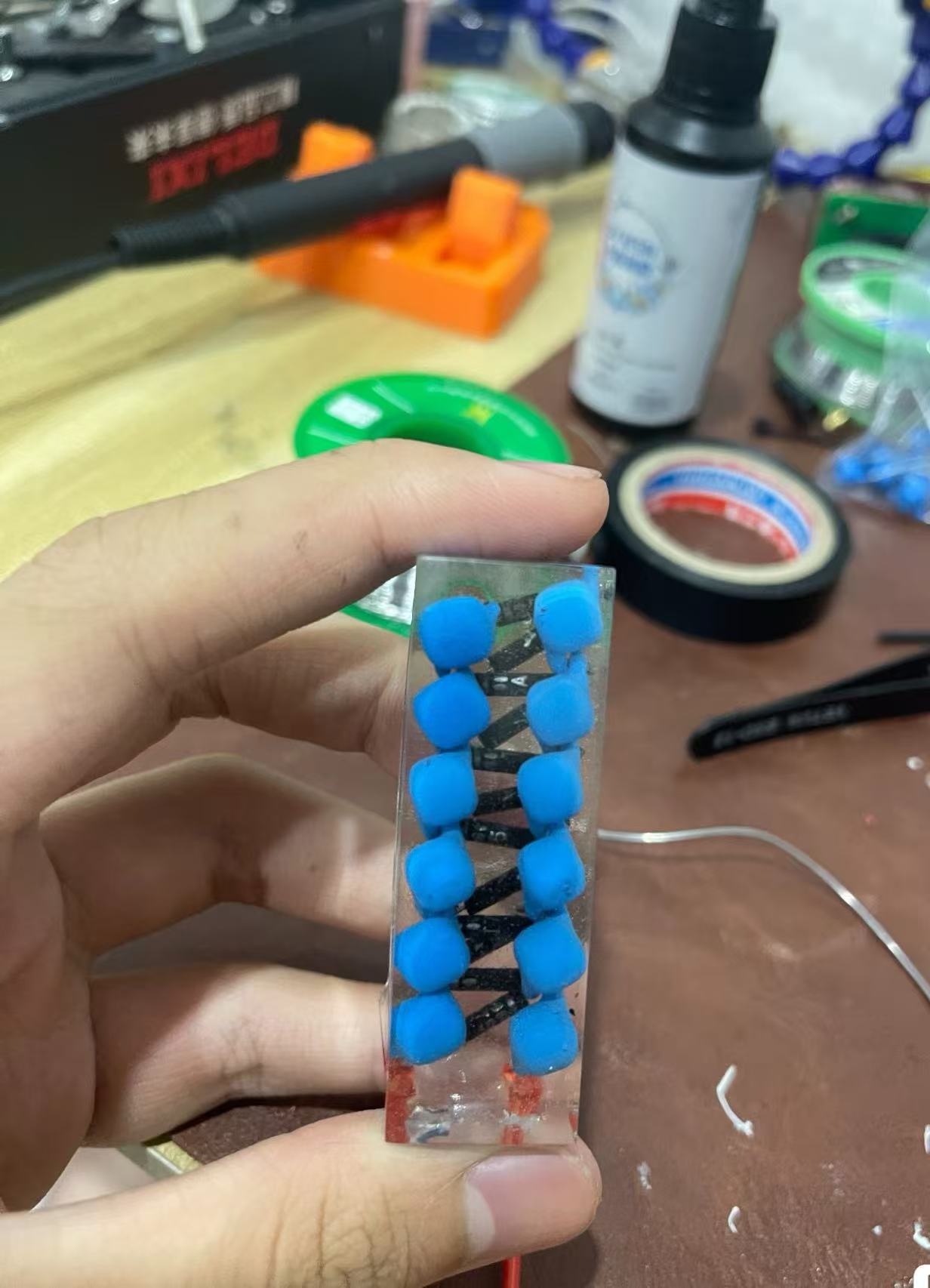

This 12-stage high-voltage multiplier module utilizes a cascade voltage-doubling circuit to boost low input voltage to a stable 20,000V DC (20kV) output. With excellent insulation and high dielectric strength, it supports arc distances up to 46mm. Arcing beyond this range may result in breakdown.

🔧 Specifications:

•Stages: 12-stage multiplier

•Max Output Voltage: 20kV (no-load)

•Max Arc Distance: Approx. 46mm (breakdown beyond this distance)

•Output Type: High voltage DC

•Encapsulation: Epoxy sealed / moisture and insulation protected

•Customization: Voltage, current, and number of stages can be customized upon request

📌 Applications:

•High-voltage educational experiments

•Electrostatic and corona discharge systems

•High-voltage power equipment testing

•Scientific research and development

•Electronic DIY and special effects
