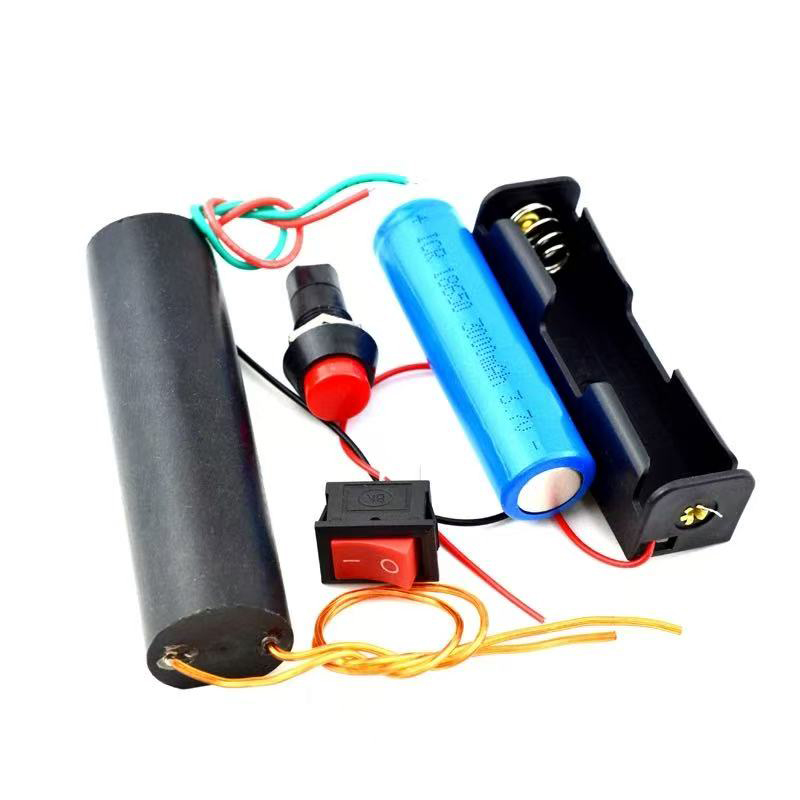

1000KV high-voltage generator with high-power super arc pulse, with battery and switch

Input current: 0.5A-1A (voltage dependent)
High pressure type: pulse high and low voltage integrated type
Output voltage: about 800KV-1000KV (Please pay attention to safety when using.)
High-voltage two-pole discharge distance: 10-15mm
Output high-voltage wire length: about 100mm
Input power cord length: Approx. 100 mm (red wire is positive, green wire is negative)
Dimensions: 88*26mm
About power supply: 3.7V lithium battery input (such as 18650 battery) can be used NiCd/NiMH battery pack, 4V or 6V lead-acid battery, etc.: the input voltage and current affect the output high voltage and arc distance.
Precautions: The high-voltage module should avoid the use of high-voltage no-load power-on, (before power-on, the appropriate distance of the high-voltage line must be adjusted, and the arcing distance of the high-voltage line is proportional to the voltage and capacity of the battery used.
When testing the arc distance, it is strictly forbidden to exceed the longest arc distance, because the high-voltage energy cannot be released, and it is easy to damage the module. )
Due to the high power, it is not easy to dissipate heat inside, and the power on time should be controlled within 5 seconds each time

1. The high-voltage module should avoid the use of high-voltage no-load when it is energized, and the appropriate distance of the high-voltage line must be adjusted before power-on, and the arcing distance of the high-voltage line is proportional to the voltage and capacity of the battery used. In order to prevent the distance from being exceeded, the output can be soldered to the pin header and fixed:
2. When testing the arc distance, it is necessary to experiment from short to long, and it is strictly forbidden to exceed the longest arc distance when energized, because the high-voltage energy cannot be released, it is easy to damage the module.
3. The power of the module is large, and the internal heat dissipation is not suitable, so it cannot work for a long time.
4. The way to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is pulled. If the maximum power can be output at about 6V.

This module is a high-voltage module high-voltage generator made of high-voltage package/transformer through component circuits, which can be used as a high-voltage source for students’ popular science experiments/electronic instruments/negative ion generators.
When using this module, adjust the output spacing first, and test the small distance when using the spacing within 1.5CM, such as 1 cm, and then slowly increase] The output is not short-circuited and does not exceed the maximum arcing distance, and works intermittently, and it is best not to exceed 5 seconds each time it is powered on.
This high-voltage module is made of Tesla coil principle to output high-voltage pulse high-voltage current, small size, high efficiency, simple peripheral circuit, top (just connect the switch, the battery can be) discharge intensity is violent
